1. Moving Lens Eppu Leinonen 6 pts

Optics · Geometric optics, Thin-lens imaging, Geometric construction

Reconstruct the unseen circular path of a moving thin lens, and the direction of its plane, from the closed image curves it traces of two fixed object points.

Problem by Eppu Leinonen.

The centre of a thin converging lens moves along a circle while the orientation of the lens remains fixed; the optical axis of the lens lies in the plane of the circle (the plane of the figure). Two fixed points PP and QQ, also in this plane, are imaged by the lens; the images are always real. As the lens moves, each image traces a closed curve in the plane of the figure: P→P′P \to P', Q→Q′Q \to Q'. The two points and both curves are shown in the figure.

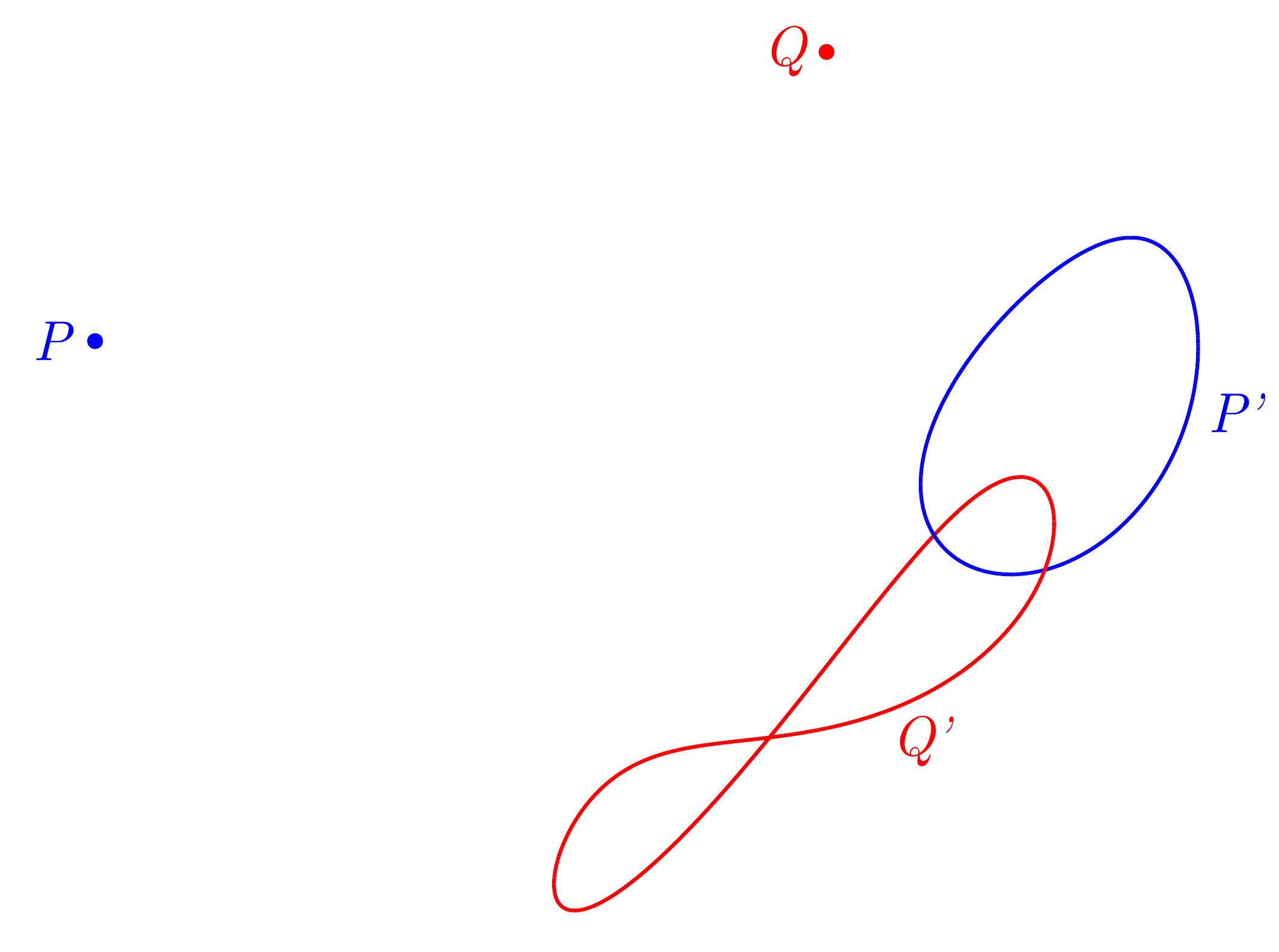

Graph: Two fixed points P and Q in a plane, with their image curves P' (red, smaller closed loop) and Q' (blue, larger closed loop) traced out as the lens moves along its circular path.

i) (2 points) Construct the circle along which the lens centre moves.

ii) (4 points) Determine the direction of the lens plane, i.e. construct a line parallel to the lens.

In the construction tasks, draw the construction on the provided sheet with the figure, detail the steps of your construction, and explain why your construction works.
